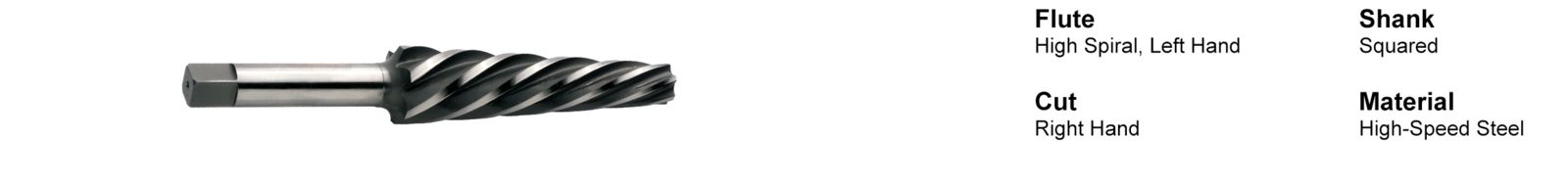

Helical Automotive Taper Reamer with Squared Shank - 1-1/2
Schedule V
Taper: 1½” Taper per foot (.1250” per inch)
The high helix design of our Automotive Taper Reamers allows for the maximum surface contact and easier chip removal thus reducing chatter, vibration and finish scoring. Helical Automotive Taper Reamers are ideal for use in steering arm, tie rod end and ball joint applications.
They can also be made as specials in duplex style, extra length, special helix angles, end cutting, with chip breakers or in premium high-speed steel or carbide.
Shipping Costs Not Included In Price
All Surface Treatments Available Upon Request. Return to Gammons for Resharpening.
| Part Number | Size | Small End Diameter | Large End Diameter | Flute Length | Number of Flutes | Shank Size | Overall Length | Price |
|---|---|---|---|---|---|---|---|---|
| ATHQA250 | 1/4 | .250 | .563 | 2.50 | 4 | .438 | 4.00 | $80.98 |
| ATHQB375 | 3/8 | .375 | .750 | 3.00 | 4 | .500 | 5.00 | $134.11 |
| ATHQA375 | 3/8 | .375 | .750 | 3.00 | 4 | .625 | 5.00 | $134.11 |
| ATHQB500 | 1/2 | .500 | .938 | 3.50 | 6 | .500 | 6.00 | $187.25 |
| ATHQA500 | 1/2 | .500 | .938 | 3.50 | 6 | .875 | 6.00 | $187.25 |
| ATHQA625 | 5/8 | .625 | 1.125 | 4.50 | 6 | .750 | 7.50 | $240.38 |
| ATHQB625 | 5/8 | .625 | 1.125 | 4.50 | 6 | 1.00 | 7.50 | $240.38 |
| ATHQA750 | 3/4 | .750 | 1.313 | 5.50 | 8 | 1.00 | 8.50 | $293.52 |
